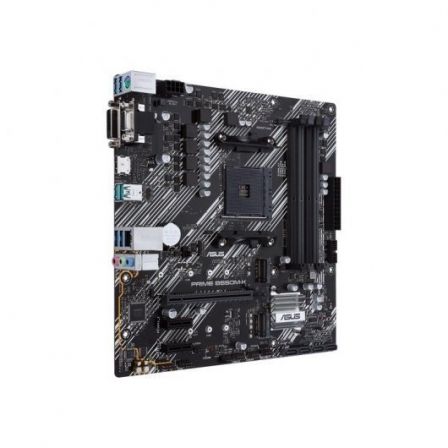

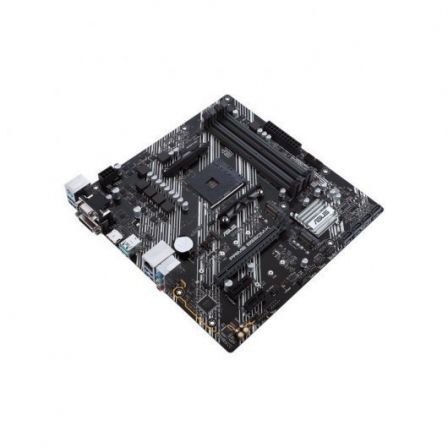

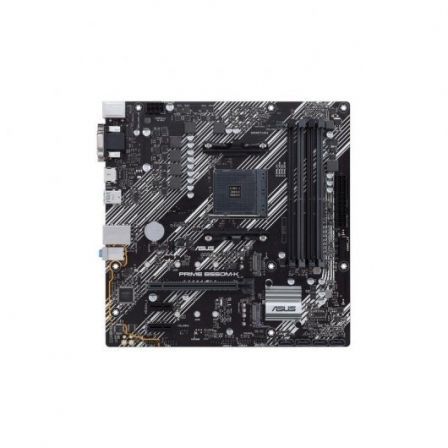

ASUS Placa Base Prime B550M-K mATX AM4

Descripción y características de ASUS Placa Base Prime B550M-K mATX AM4

Marca
Asus

Modelo
PRIME B550M-K

(90MB14V0-M0EAY0)

Plataforma
- m-ATX (24.4 cm x 24.4 cm)

Chipset
- AMD® B550 chipset

CPU
Soportados
- Admite AMD Ryzen™ 3ª generación y AMD Ryzen™ 3ª generación con procesador de gráficos Radeon™ con Socket AMD AM4

Memoria
- 3ª Gen AMD Ryzen™

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

- 3ª Gen AMD Ryzen™ con gráficos Radeon™

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

- Dual Channel Memory Architecture

- ECC Memory (ECC mode)

Slots Expansión
3rd Gen AMD Ryzen™ Processors

- 1 x PCIe 4.0 x16 (x16 mode)

3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

- 1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

- 2 x PCIe 3.0 x1

Gráficos
- 1 x D-Sub

- 1 x DVI-D

- 1 x HDMI 2.1(4K@60HZ)

Puertos E/S,
Conectores
Internos

- 1 x CPU Fan

- 2 x Chassis Fan

- 1 x USB 3.2 Gen 1

- 2 x USB 2.0

- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

- 1 x SPI TPM header

- 4 x SATA 6Gb/s

- 1 x S/PDIF out header(s)

- 1 x 24-pin EATX Power

- 1 x 8-pin EATX 12V Power

- 1 x Front panel audio (AAFP)

- 1 x Clear CMOS jumper(s)

- 1 x System panel

- 1 x COM port header

- 1 x Speaker

Externos

- 1 x PS/2 keyboard/mouse combo

- 1 x DVI-D

- 1 x D-Sub

- 1 x HDMI

- 1 x LAN (RJ45)

- 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)

- 4 x USB 3.2 Gen 1 (blue) Type-A

- 3 x Audio jack(s)

Otras
Características
Almacenamiento

- 2 x M.2

- 4 x SATA 6Gb/s

- Soporta Raid 0, 1, 10

USB

- 2 x USB 3.2 Gen 2 (2 x Type-A)

- 4 x USB 3.2 Gen 1 (4 x Type-A)

- 2 x USB 3.2 Gen 1 (2 x Type-A)

- 4 x USB 2.0 (4 x Type-A)

Red

- Realtek RTL8111H 1Gb Ethernet

- ASUS LANGuard

Audio

- Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Fecha Revisión
14-09-2020 por MSB
