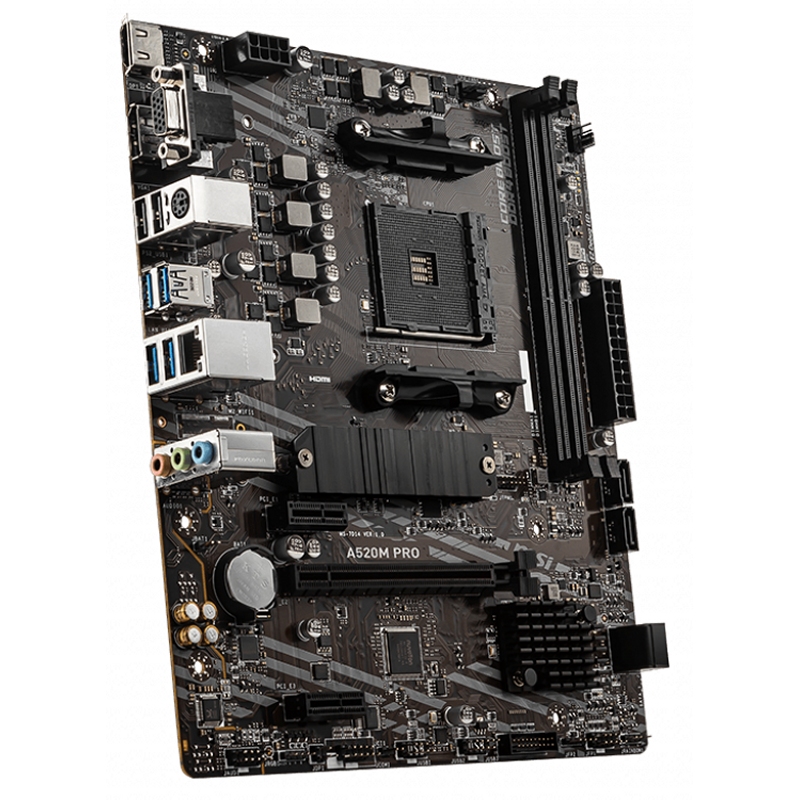

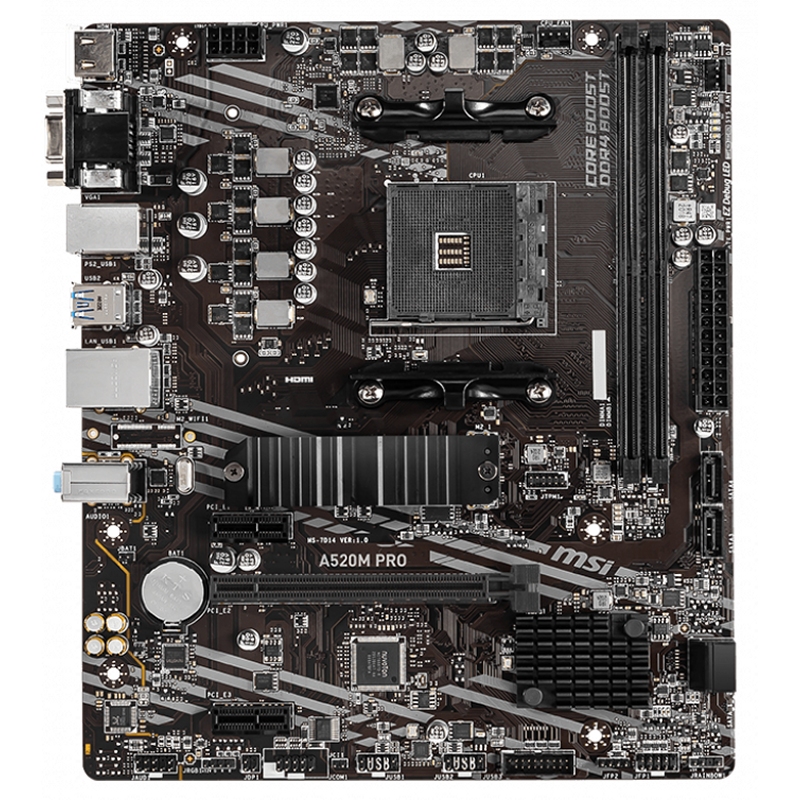

MSI Placa Base A520M PRO mATX AM4

Descripción y características de MSI Placa Base A520M PRO mATX AM4

Marca
msi

Modelo
A520M PRO

(911-7D14-011)

Plataforma
- M-ATX (24.4 cm x 21 cm)

Chipset
- AMD® A520 chipset

CPU
Soportado
- Admite AMD® Ryzen ™ 1st, 2nd y 3rd Gen Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors

Memoria
- 2 x DDR4 memory slots, hasta 64GB

Soporta DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Soporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

- 1DPC 1R max speed 4600 MHz

- 1DPC 2R max speed 3866 MHz

- Dual channel memory architecture

- Soporta non-ECC UDIMM memory

- Soporta ECC UDIMM memory (non-ECC mode)

- Soporta un-buffered memory

Slots Expansión
- 1 x PCIe x16 slot (PCI_E2)

- 2 x PCIe 3.0 x1 slots

Gráficos
- 1 x VGA

- 1 x HDMI 2.1

- 1 x DisplayPort

Puertos E/S,
Conectores
Internos

- 1 x 24-pin ATX main power

- 1 x 8-pin ATX 12V power

- 4 x SATA 6Gb/s

- 1 x Serial port

- 1 x M.2 slot (M-Key)

- 1 x USB 3.2 Gen 1 5Gbps

- 2 x USB 2.0

- 1 x 4-pin CPU fan

- 1 x 4-pin system fan

- 1 x Front panel audio

- 2 x System panel

- 1 x Chassis Intrusion

- 1 x 4-pin RGB LED

- 1 x 3-pin RAINBOW LED

- 1 x TPM module

- 1 x Clear CMOS jumper

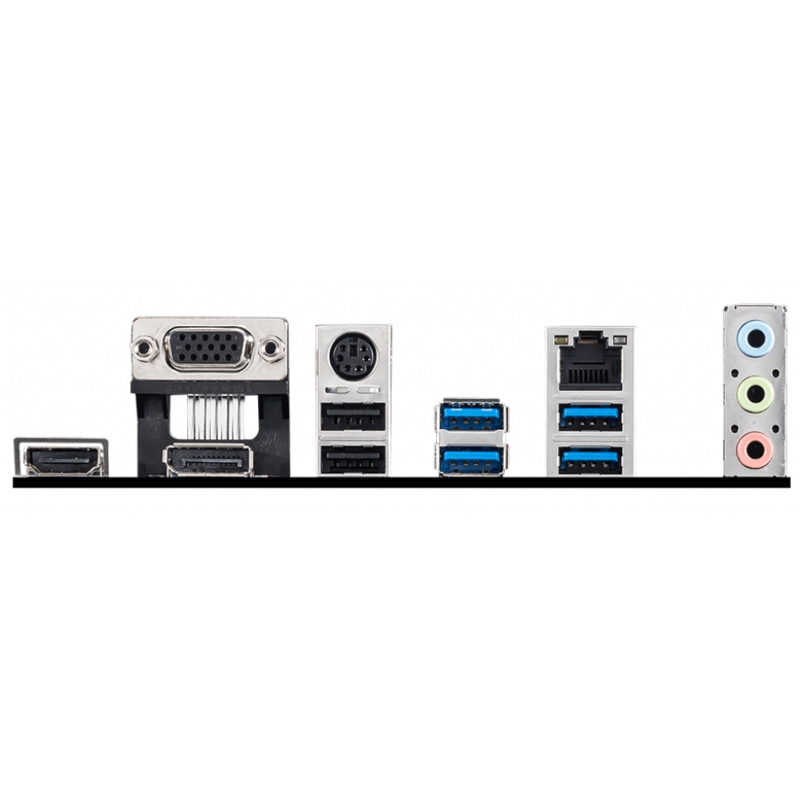

Externos

- 1 x VGA

- 1 x PS / 2 puerto combinado

- 2 x USB 2.0

- 1 x DisplayPort

- 1 x LAN

- 1 x HD Audio

- 1 x HDMI

- 4 x USB 3.2 Gen1

Otras
Características
Almacenamiento

- 4 x SATA 6Gb/s ports

- 1 x M.2 slot (Key M)

RAID

- Soporta RAID 0, RAID1 y RAID 10

USB

- 2 x USB 3.2 Gen 1

- 6 x USB 2.0

- 4 x USB 3.2 Gen 1

Red

- 1 x controlador Realtek® 8111H Gigabit LAN

Audio

- Códec Realtek® ALC892

- Audio de alta definición de 7.1 canales

Montaje

- 6 x agujeros de montaje

Fecha Revisión
04-10-2023 por RTY
