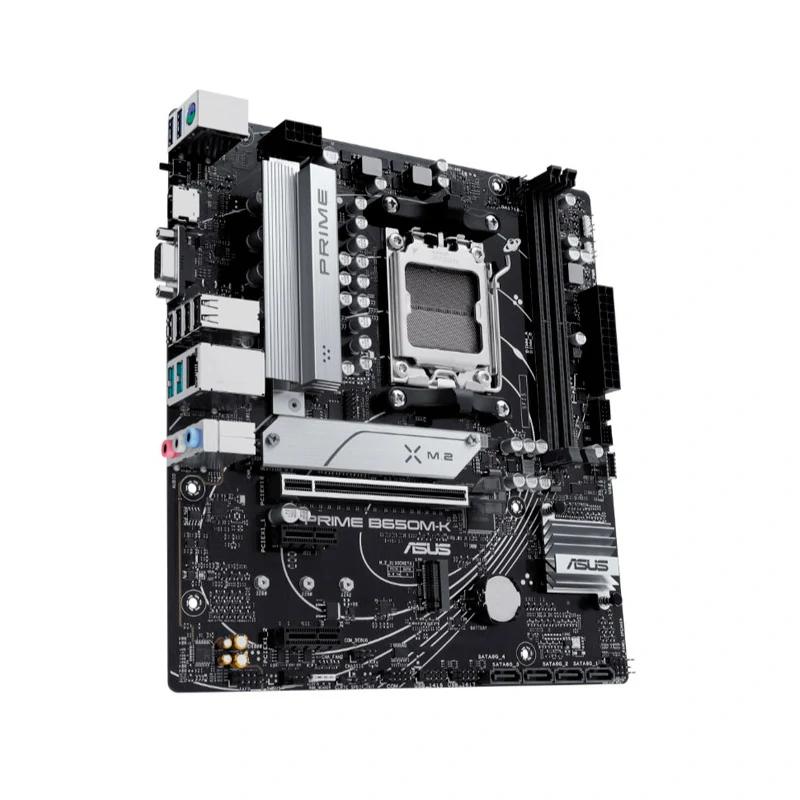

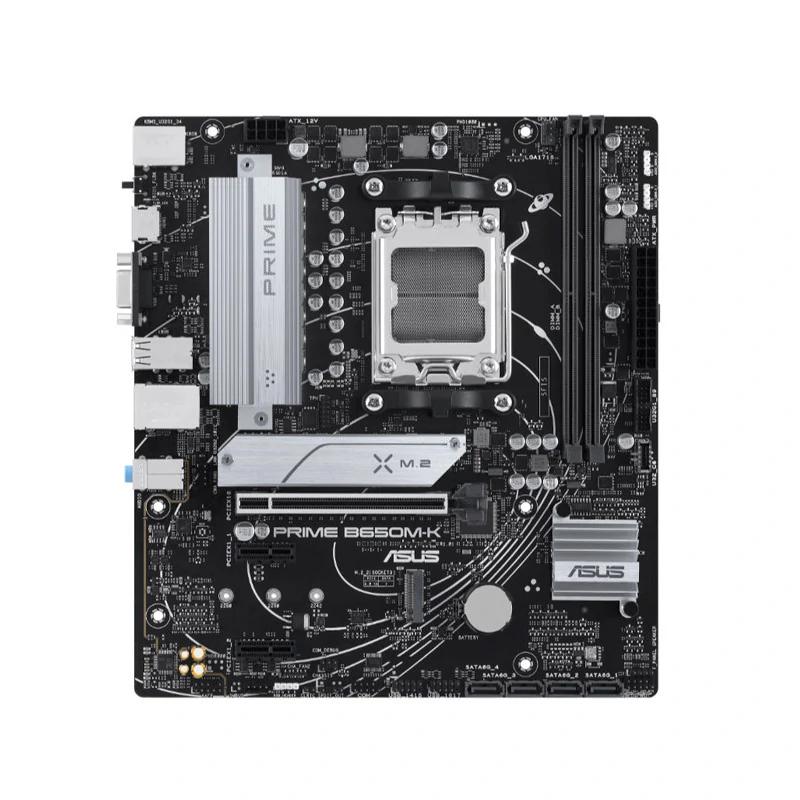

ASUS Placa Base PRIME B650M-K mATX AM5

Descripción y características de ASUS Placa Base PRIME B650M-K mATX AM5

Marca
Asus

Modelo
90MB1F60-M0EAY0

Plataforma
- mATX (24,4 cm x 21,1 cm)

Chipset
- Intel B650

CPU Soportados
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Memoria
- 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*

- Dual Channel Memory Architecture

- Supports AMD Extended Profiles for Overclocking (EXPO™)

- OptiMem II

Slots Expansión
- 1 x PCIe 4.0 x16 slot (supports x16 mode)

- 2 x PCIe 4.0 x1 slots

Gráficos
- 1 x VGA

- 1 x HDMI

Puertos E/S,
Conectores
Conectores Internos E/S

- 1 x 4-pin CPU Fan header

- 2 x 4-pin Chassis Fan headers

- 1 x 24-pin Main Power connector

- 1 x 8-pin +12V Power connector

- 2 x M.2 slots (Key M)

- 4 x SATA 6Gb/s ports

- 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )

- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support 4 additional USB 2.0 ports

- 2 x Addressable Gen 2 headers

- 1 x Aura RGB header

- 1 x Clear CMOS header

- 1 x COM Port header

- 1 x Front Panel Audio header (AAFP)

- 1 x S/PDIF Out header

- 1 x Speaker header

- 1 x SPI TPM header (14-1pin)

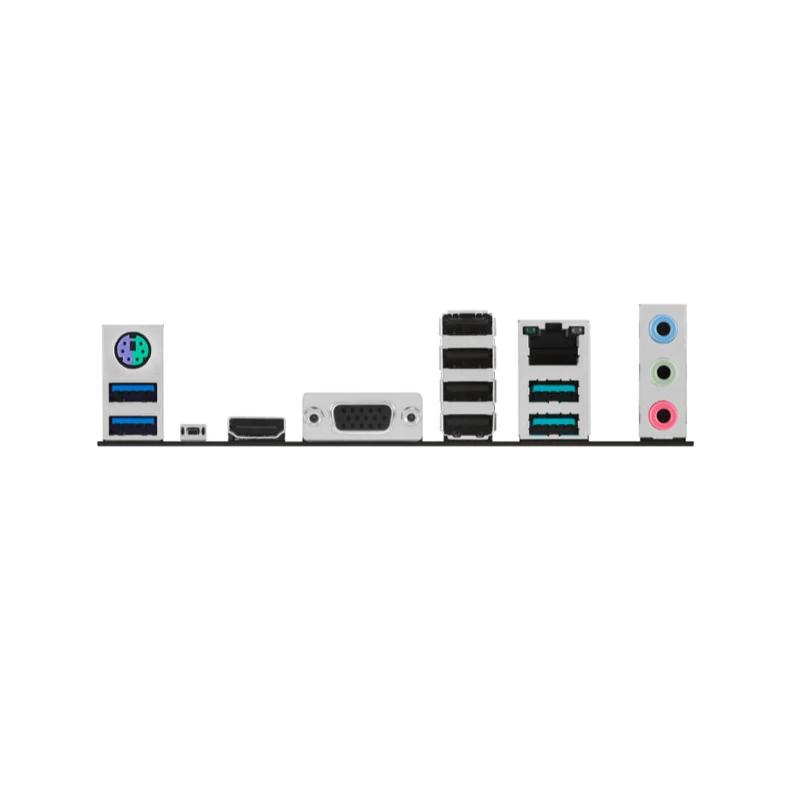

- 1 x 10-1 pin System Panel header Panel E/S Trasero

- 2 x USB 3.2 Gen 2 ports (2 x Type-A)

- 2 x USB 3.2 Gen 1 ports (2 x Type-A)

- 4 x USB 2.0 ports (4 x Type-A)

- 1 x VGA port

- 1 x HDMI port

- 1 x Realtek 2.5Gb Ethernet port

- 3 x Audio jacks

- 1 x BIOS FlashBack button

- 1 x PS/2 Keyboard/Mouse combo port

Otras
Características
Audio

- Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

LAN

- 1 x Ethernet Realtek de 2,5 Gb

Almacenamiento

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- 4 x SATA 6Gb/s ports

USB

- 2 x USB 3.2 Gen 2 ports (2 x Type-A)

- 2 x USB 3.2 Gen 1 ports (2 x Type-A)

- 4 x USB 2.0 ports (4 x Type-A)

- 1 x USB 3.2 Gen 1 connector (supports USB Type-C)

- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Fecha Revisión
15-07-2024 por RTY
