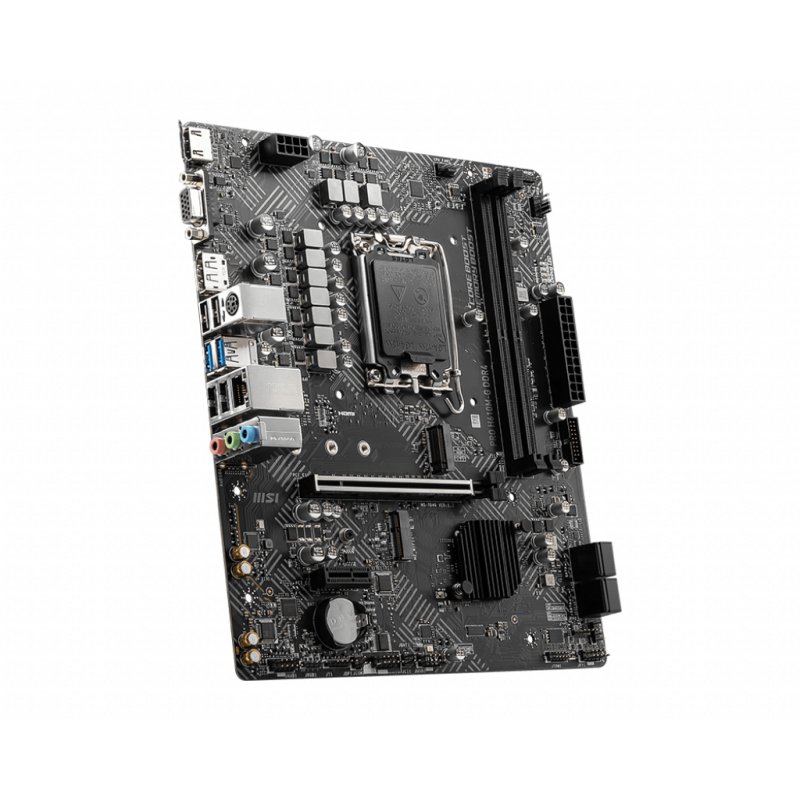

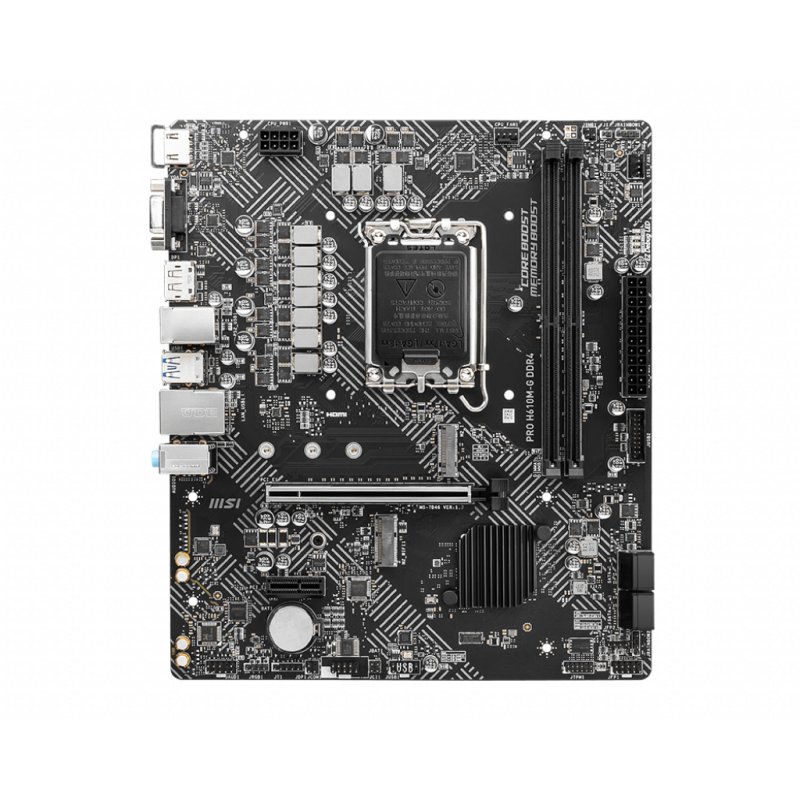

Placa base MSI Pro H610M-G DDR4 mATX 1700

Descripción y características de Placa base MSI Pro H610M-G DDR4 mATX 1700

Marca
MSI

Modelo
911-7D46-003

Plataforma
- mATX (23.6 cm x 20.2 cm)

Chipset
- Intel® H610 Chipset

CPU
Soportados
- Admite procesadores Intel Core, Pentium Gold y Celeron de 12ª, 13ª y 14ª generación

- Zócalo del procesador LGA1700

Memoria
- 2 x DDR4, soporta hasta 64GB

- Soporta 1R 2133/ 2666/ 3200 MHz (por JEDEC y POR)

- Admite el modo de doble canal

- Admite memoria sin búfer ni ECC

Slots Expansión
- 1x PCIe x16 slot (From CPU)

- 1x PCIe x1 slot

- 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

Gráficos
- 1x HDMI 2.1 with HDR port, a maximum resolution of 4K 60Hz 1 2

- 1x VGA port, a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1

- 1x DisplayPort 1.4 port, a maximum resolution of 4K 60Hz

Puertos E/S,
Conectores
Conectores Internos E/S

- 1x Intel® I219V 1Gbps LAN controller

- 1x 24-pin ATX main power

- 1x 8-pin ATX 12V power

- 1x 4-pin CPU fan

- 1x 4-pin system fan

- 1x Front panel audio

- 2x System panel s

- 1x Chassis Intrusion

- 1x TPM module

- 1x Clear CMOS jumper

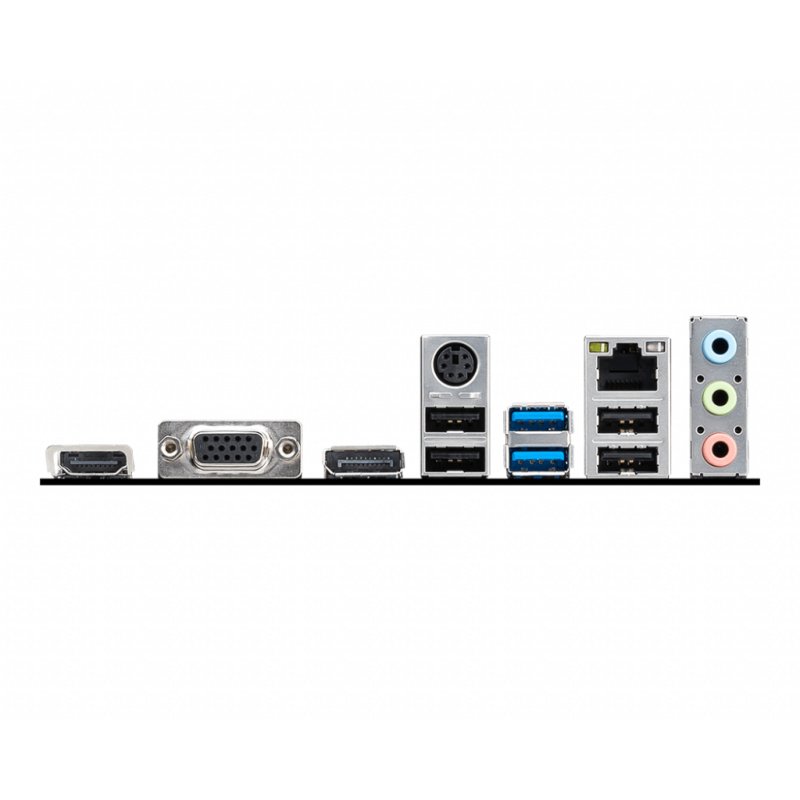

Panel E/S Trasero

- HDMI

- VGA

- DisplayPort

- Keyboard/Mouse

- USB 3.2 Gen 1 5Gbps Type-A

- LAN port

- Audio connector

- USB 2.0

Otras
Características
USB

- Intel® H610 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Almacenamiento

- 4x SATA 6Gb/s ports

Audio

- Realtek® ALC892/ ALC897 Codec

- 7.1-Channel High Definition Audio

LAN

- 1x Intel® I219V 1Gbps LAN controller

Sistema Operativo

- Soporte para Windows 11 64-bit

Fecha Revisión
23-06-2025 por RTY
